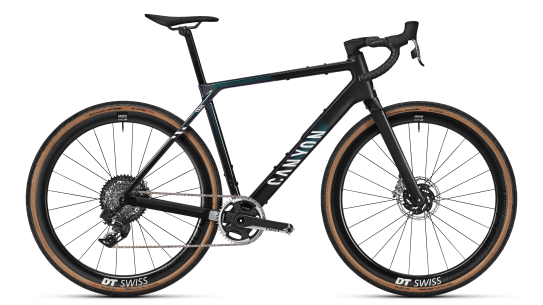

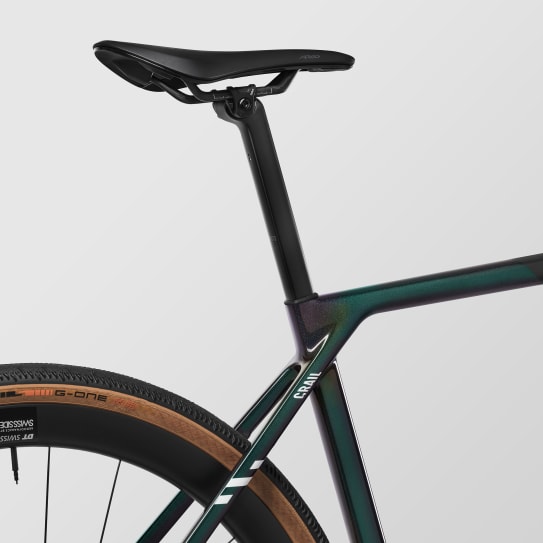

Grail CFR AXS

Name: Grail CFR AXS
Brand: Canyon
Price: 6199.00 USD
Availability: OutOfStock
Rating: 5 (25 reviews)

Benchmark stiffness-to-weight. Benchmark carbon. Benchmark parts. Uniting our flagship gravel frame with pro-level shifting and premium carbon wheels, this bike is fit for the world’s best.

Weight: 17.73 lbs
Material: Carbon (CFR)

Customer reviews (25)

Press and awards (2)

Colour: Hale-Bopp

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Sizing tip: the new Grail is a race bike with a longer reach for high-speed stability. If you fall between two sizes, we recommend the smaller bike for a more relaxed riding position.

Members only product.

Sold out

Highlights Grail CFR AXS

Meet the New Fast

Professional pace pusher

Each year the competition in gravel racing levels up. Course records are broken as athletes train harder and bike technology advances. At Canyon, we work together with our pros to supply them with the best bike and it’s already paid off. Ridden to victory by Caro Schiff at Unbound, the Grail is a pure gravel race bike proven by the world’s fastest.

Ride all out on all terrain

Lining up to race or hauling down your local doubletrack, the new Grail is ready to be ridden at the highest level or embark on a gravel odyssey. Its inspiring handling and compliant chassis will have you pinning it over rough stuff, while the lightweight aero frame lets you push the pace uphill and down. Factor the integrated storage and you have a bike born for long rides and all-terrain speed.

Key features

Canyon Factory Racing goes gravel

Only bikes painstakingly crafted from the highest quality carbon fibre earn the Canyon Factory Racing (CFR) moniker. Designed and engineered together with our pro riders, the Grail CFR frame is our commitment to creating the fastest and lightest bike possible without sacrificing handling and durability.

Set the pace

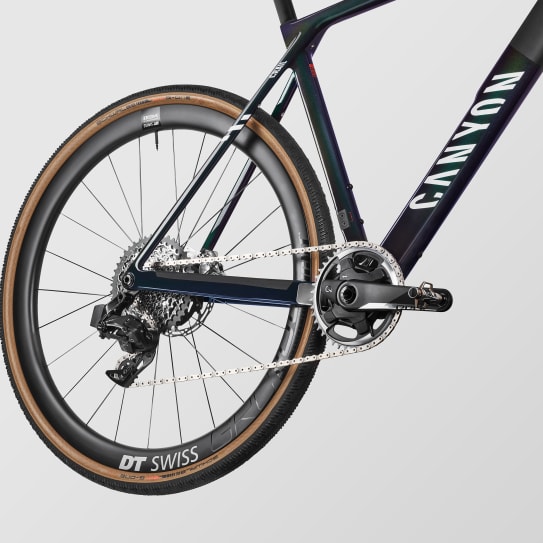

Power meters let you know how your engine is doing in real time. They’re essential if you want to bring out your best, which is why the Grail CFR AXS comes equipped as standard with accurate Quarq spider power meters. Training or toeing the line at Unbound, you’ll always set the perfect pace.

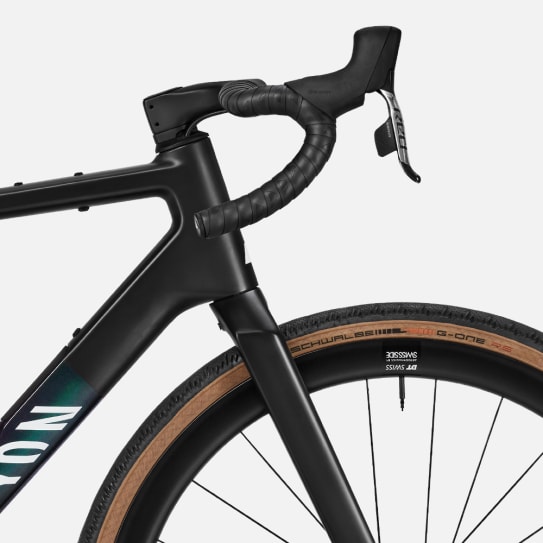

Ergonomic evolution

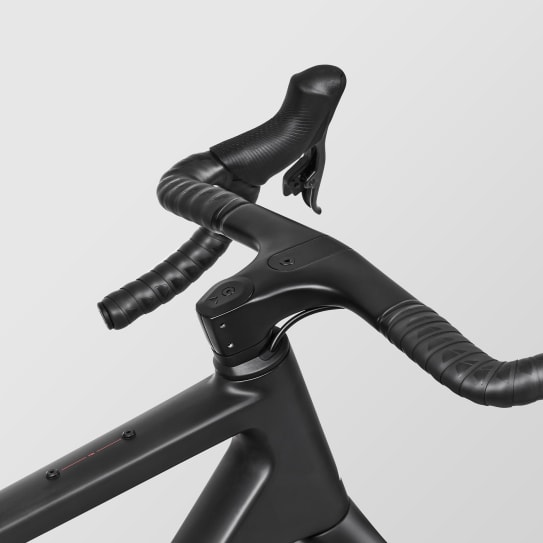

For long days on gravel roads your contact points have to be on point and the new Double Drop Bar delivers the perfect mix of ergonomic and aggressive riding positions thanks to in-depth testing and collaboration with our pro riders. The aero-optimised bar is easy to travel with thanks to semi-internal cable routing.

Get in the groove

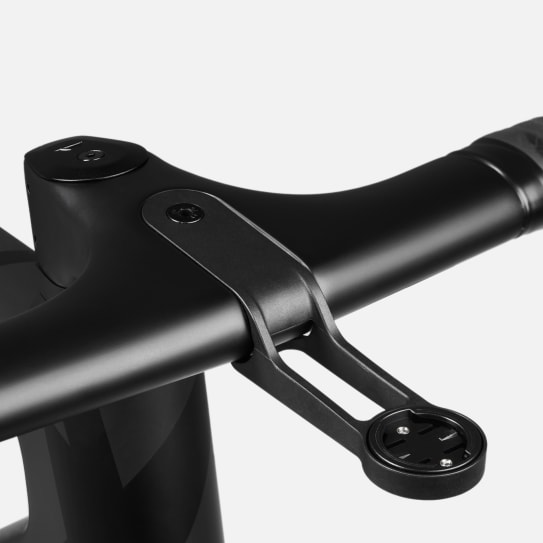

From pushing to finish the race before sunset to big days out exploring with friends, gravel riding comes in many forms and the best bike can adapt to however you want to ride. The Gear Groove on the Grail’s new Double Drop Bar allows you to elegantly integrate aero bars as well as smartphone, bike computer and light mounts to the handlebars.

Integrated storage

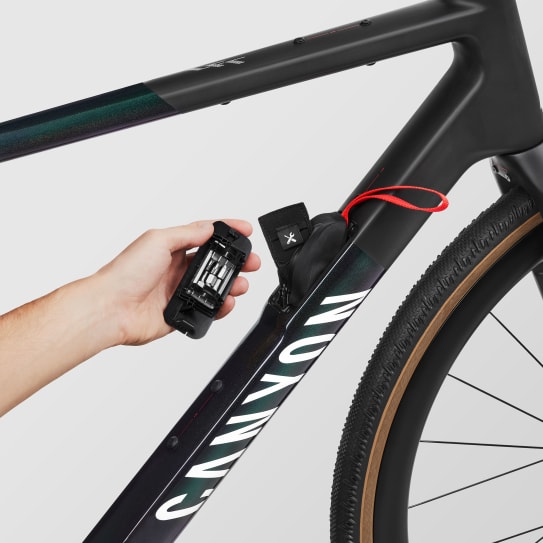

Never hit the road without your repair kit thanks to the down tube integrated storage system. The unique design allows you to securely stash an inner tube*, levers*, and inflator* in a special noise-dampening pouch*, while your mini tool (included) and pump* lock into an easy-to-access hatch within the down tube. *Parts sold separately

Loaded and locked

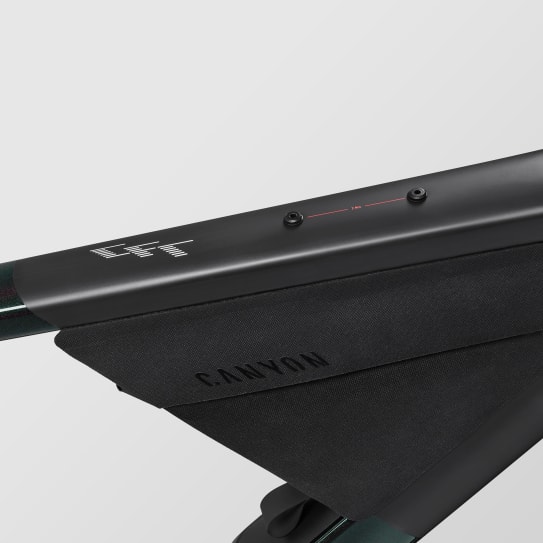

The Canyon LOAD FidLock QuickLoader bag* was made specially for the Grail and can be easily attached and removed using a special magnetic clip system. The bag fits seamlessly into the frame and even improves aerodynamics by 1.5 watts in the wind tunnel. *Parts sold separately

Components

Content is loading

Frame

Frame
- Canyon Grail CFR
- Superlight pro-level build of the latest-generation Grail gravel race bike. Benchmark stiffness-to-weight, more capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility.
- Axle dimension 12x142 mm
- Tyre clearance 42 mm
- Material Carbon (CFR)
- Weight 1,033 g
Fork
- Canyon FK0118 CF Disc
- Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage.
- Axle dimension 12x100 mm
- Fork steer tube diameter 1 1/8"
- Tyre clearance 46 mm
- Material Carbon (CF)
- Weight 428 g
Seatpost Clamp
- Canyon GP0224-02 Adapter seatstay 7x9
Seatpost Clamp
- Canyon GP0295-03 Seatpost Wedge

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM Red XPLR eTap AXS D1
- Weight 296 g
Cassette
- SRAM Force XPLR XG-1271, 12-speed, 10-44
- Number of sprockets 12
- Range 10-44 12S
Crank
- SRAM RED AXS D1
- Number of chainrings 1
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard PF 86,5
- Weight 67 g
Chain
- SRAM RED D1 12s
- With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.

Brakes

Shift-/ Brake Lever
- SRAM RED eTap AXS HRD
- Number of pistons 2
- Weight 605 g
Shift-/ Brake Lever
- SRAM RED eTap AXS HRD 12s
- Number of pistons 2
- Weight 450 g
Brake Rotor
- SRAM Centerline X
- Size 160 mm
- Weight 130 g

Wheels

Front Wheel
- DT Swiss GRC1100
- Axle dimension 12x100 mm
- Rotor mount Center Lock
- Rim height 42 mm
- Weight 741 g
Rear Wheel
- DT Swiss GRC1100 XDR
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Rim height 42 mm
- Weight 845 g
Tyre
- Schwalbe G-One RS Evo
- Width 40 mm
- Weight 445 g
Thru Axle
- Canyon Through Axle
- Axle dimension 12x100 mm
- Material Aluminium (AL)
Thru Axle
- Canyon Through Axle
- Axle dimension 12x142 mm
- Material Aluminium (AL)

Cockpit

Cockpit
- Canyon Cockpit CP0039
- One-piece carbon cockpit with specialist gravel ergonomics and design, and versatile Gear Groove interface for mounting a range of accessories. 16° flare on at drops, 5° backsweep on tops.
- Material Carbon (CF)
- Weight 360 g
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color black

Seat

Saddle
- Fizik Vento Argo X1
- Width 140 mm
- Gender Unisex
- Weight 179 g
Seatpost
- Canyon SP0072
- Material Carbon (CF)
- Weight 133 g

Light

Lights
- Reflector Set

Accessories

Workshop
- Canyon FIX Minitool 6+1
- The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System.
- Features Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx)
- Material S2 Steel
- Dimensions 55mm x 29mm x 6,9mm
- Weight 62g
Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
Seat Height in mm (a)	623 - 723	653 - 753	683 - 783	713 - 813	743 - 843	773 - 873	803 - 903
Seat Tube Length in mm (b)	420	450	480	510	540	570	600
Top Tube Length in mm (c)	533	550	564	586	609	623	648
Head Tube Length in mm (d)	123	129	145	163	187	207	230
Head Tube Angle (e)	69,5°	71°	71,5°	71,5°	71,5°	71,8°	71,8°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	425	425	425	425	425	425	425
Wheel Base in mm (h)	1.021	1.024	1.034	1.057	1.080	1.092	1.118
Stack in mm (i)	545	556	573	591	613	633	655
Reach in mm (j)	372	385	394	411	427	435	454
Stand-over Height in mm (k)	745	766	789	813	838	863	901
Bottom Bracket Offset in mm (l)	75	75	75	75	75	75	75
Stack+ in mm	625	632	652	669	692	713	735
Reach+ in mm	405	420	439	456	472	489	508

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15	15	15	15
Cockpit Dimensions in mm	60-420	60-420	70-420	70-440	70-440	80-460	80-460
Crank Length in mm	165,0	165,0	170,0	172,5	172,5	175,0	175,0
Chainring Size	42	42	42	42	42	42	42
Seat Post Length in mm	335	335	335	335	335	335	335
Maximum Seat Post Insertion Depth in mm	180	180	180	180	180	180	180
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80	80	80
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160

Download PDF

Press and awards

2024

Bike Of The Year

With its high level of compliance, refined geometry, riding stability and well thought-out luggage solutions, the Grail is perfect for long days in the saddle.

2024

Design & Innovation Award

With the Grail CFR, Canyon bring functionality to a whole new level and significantly increase the bike’s range of applications.

Content is loading

Grail CFR AXS support

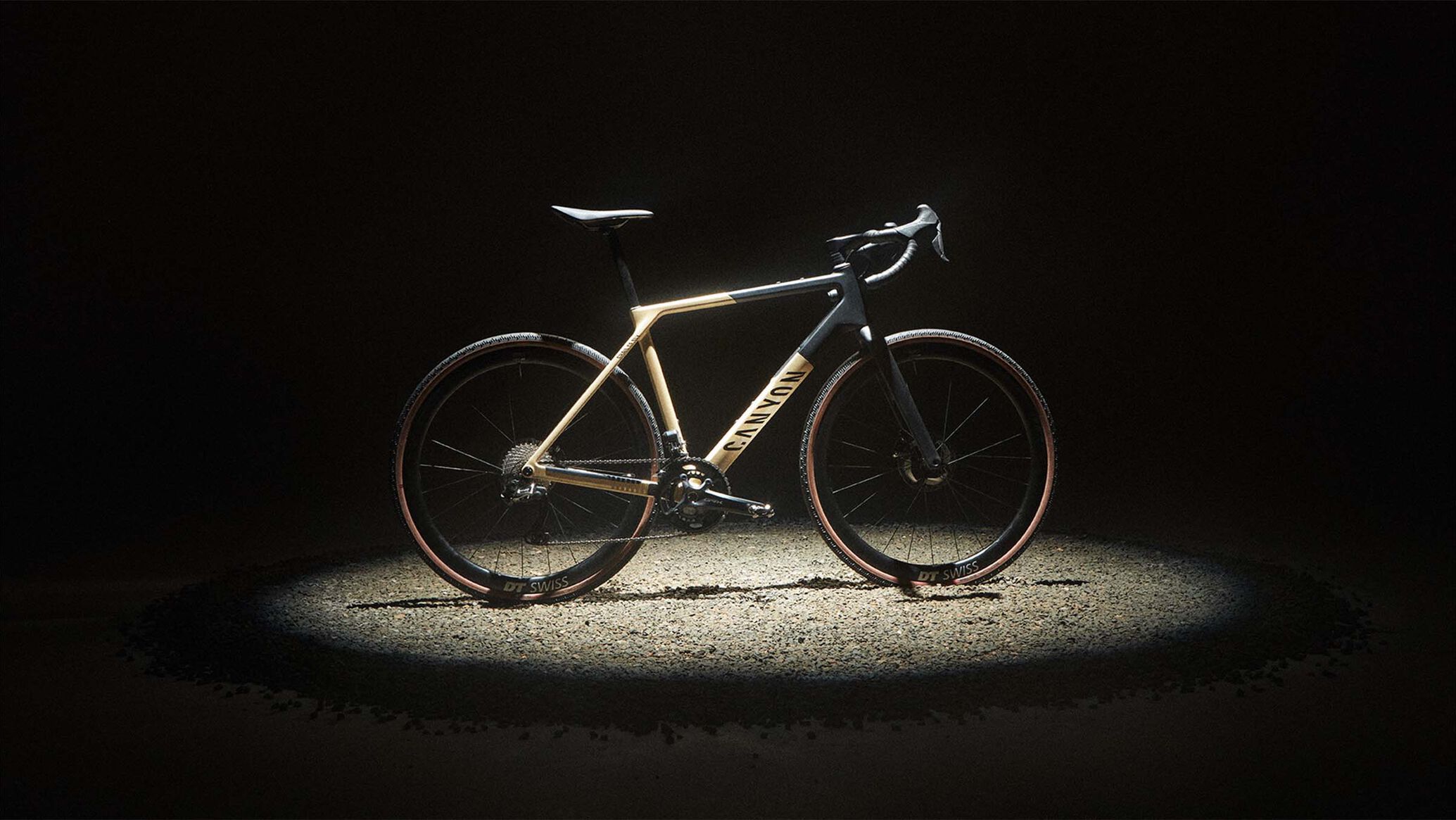

CANYON GRAIL | The Story Behind The New Fast

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
