Spectral:ONfly CF LTD

Refurbished bike in S

Builds don’t come any better than this- a trail tough spec, with a compact motor and remarkable overall weight. This is a no holds barred lightweight trail eMTB.

Weight: 18.1 kg
Material: Carbon (CF)

Customer reviews (12)

Press and awards (2)

Colour: Dark Matter

Members only product.

Frame Size: S

Members only product.

Sold out

Highlights Spectral:ONfly CF LTD

Trail through and through

More control. More fun.

We’ve equipped each Spectral:ONfly with K.I.S.—an ingenious spring mechanism housed inside the top tube that helps center your steering. End result? You experience more control on sketchy descents, more grip when its loose, and more fun in rough, off-camber conditions.

Fine tune your handling

You can custom tune how K.I.S. feels—with a simple twist of an allen wrench—to suit your own ride style and conditions. What’s more, K.I.S. is totally maintenance-free, protected from damage, and has a lifetime warranty. Don’t fancy K.I.S.? Each bike comes with an easy to install blanking plate that covers the adjuster slot.

What is :ONfly?

:ONfly is our line of innovative, lightweight e-bikes that range from e-MTB to e-gravel machines. Featuring sleek, compact motors and batteries, our :ONfly models hit the elusive sweetspot between traditional bikes and full power e-bikes.

CLLCTV approved

“Wait, this is an e-bike? There were multiple moments on the trail when I forgot I was riding an E-MTB. The bike feels super playful and lightweight. It’s nice to just pedal and not worry about how hard you are working.” — Samantha Soriano, Professional Freeride MTB athlete.

Components

Frame

Frame
- Canyon M095-02 frame
- Material Carbon (CF)
- Weight 1,280 g
Rear Shock
- FOX Float X Factory
- Weight 499 g
Suspension Fork
- FOX 36 Factory Grip2
- Axle dimension 15x110 mm
- Stanchion Diameter 40 mm
- Travel 160 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Weight 2,181 g
Seatpost Clamp
- Canyon GP0446-01

Drivetrain

Motor
- TQ HPR 50 Motor
Battery
- SRAM Powerpack
Battery
- TQ HPR Battery
Rear Derailleur
- SRAM XX Eagle AXS Transmission
- Weight 450 g
Chainguard
- Canyon GP0480-01 slim
Shift Lever
- SRAM AXS POD Ultimate
- Weight 71 g
Cassette
- SRAM XX Eagle Transmission 10-52
- Number of sprockets 12
Crank
- SRAM XX Eagle E-MTB Crank
Chainring
- SRAM XX Eagle Transmission DM E-MTB Chainring
Chain
- SRAM XX T-Type

Brakes

Disc Brake
- SRAM Code Ultimate Stealth
Disc Brake
- SRAM Code Ultimate Stealth
Brake Rotor
- SRAM HS2
- Size 200 mm
- Weight 255 g

Wheels

Front Wheel
- Reynolds Trail 329 Blacklabel Expert
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim material Carbon
- Weight 712 g
Rear Wheel
- Reynolds Blacklabel 327 Trail Expert
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Weight 864 g
Tyre
- Maxxis Minion DHR II Exo
- Width 2,4"
- Weight 1,035 g
Tyre
- Maxxis Minion DHR II Exo+
- Width 2.4"
- Weight 1,000 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length 45 mm
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
- Material Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter 35,0 mm
- Rise 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender Unisex
- Weight 251 g

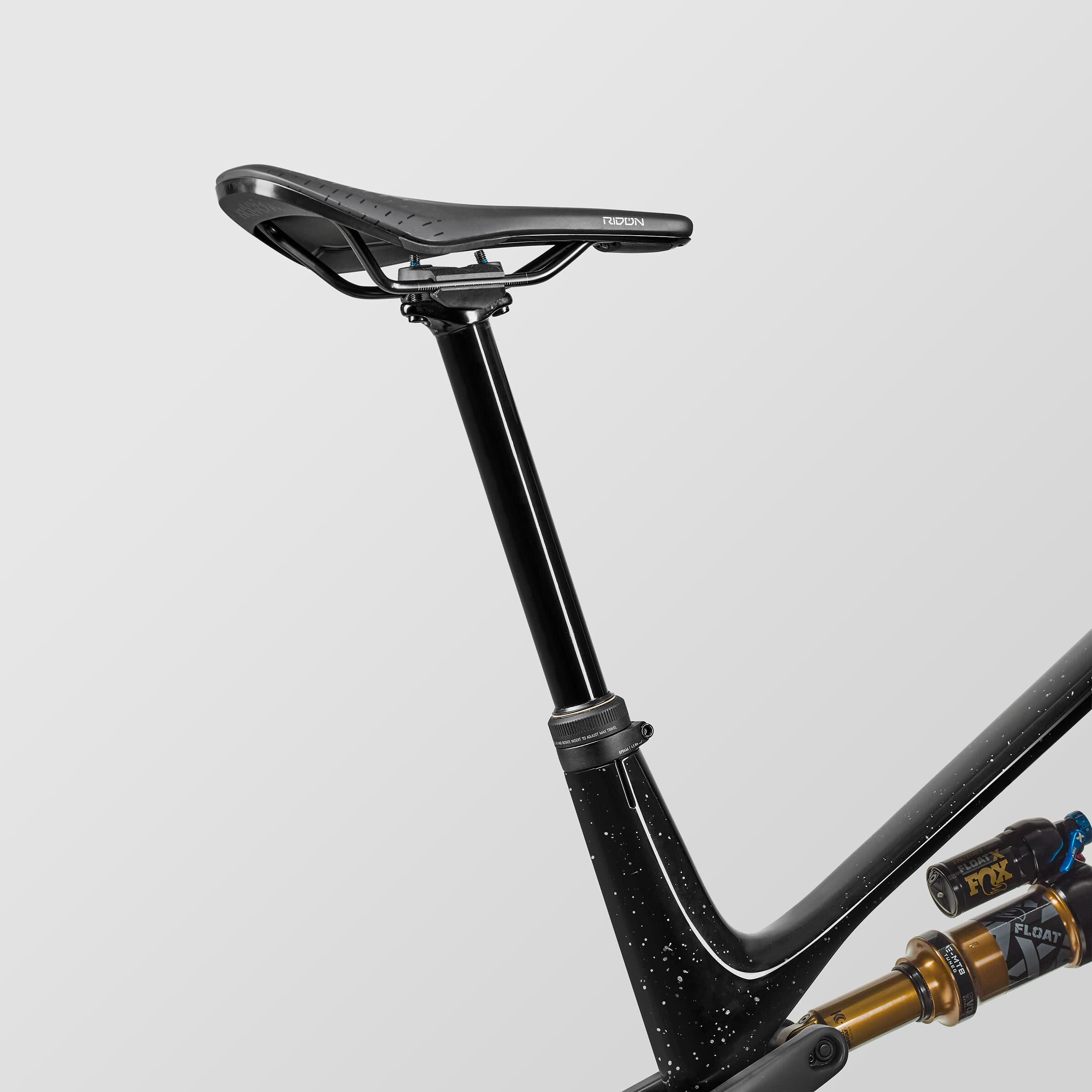

Seatpost
- Canyon SP0070-01
- Air cartridge. Cable actuated.
- Travel Dependent on frame size (see component geometry table.)
- Seatpost diameter 34,9 mm
- Material Aluminium (AL)
- Weight 654 g

Light

Lights
- Reflector Set

Accessories

Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Declaration of confirmity M095
Manuals and Accessories
- QSG M095
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	635 - 785	680 - 830	710 - 860	750 - 900
Seat Tube Length in mm (b)	400	415	445	455
Top Tube Length in mm (c)	594	621	648	675
Head Tube Length in mm (d)	105	115	125	135
Head Tube Angle (e)	64°	64°	64°	64°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.221	1.251	1.280	1.309
Stack in mm (i)	620	629	638	647
Reach in mm (j)	445	470	495	520
Stand-over Height in mm (k)	734	739	743	747
Bottom Bracket Offset in mm (l)	31	31	31	31

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	170,0	170,0	170,0	170,0
Seat Post Diameter in mm	34,9	34,9	34,9	34,9
Dropper post travel in mm	170	200	200	230
Seat Post Length in mm	457	517	517	587
Maximum Seat Post Insertion Depth in mm	270	300	300	340
Minimum Seat Post Insertion Depth in mm	120	150	150	190
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	200 / 200	200 / 200	200 / 200	200 / 200
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	150	150	150	150
Battery capacity	360 Wh	360 Wh	360 Wh	360 Wh
Fitting Length	210X55	210X55	210X55	210X55

Download PDF

Press and awards

2025

Editor's Choice

With the Editors' Choice Award, we recognize bikes that stand out from the crowd and mark a special milestone in technical development.

2025

iF DESIGN AWARD 2025 Winner

The iF DESIGN AWARD, with over 10,000 submissions from around 70 countries last year, stands as one the most prestigious design awards in the world. Owned by the non-profit iF Design Foundation, the award emphasizes design's global impact and ensures impartiality with our professional jury upholding strict screening criteria. To be awarded the iF DESIGN AWARD means passing a rigorous two-stage selection by renowned design experts. With an increasing number of participants every year, only the highest-quality will be selected.

Content is loading

Spectral:ONfly CF LTD support

Bike classification

This category also covers the requirements of categories 1e-3e. In addition, bicycles of this category are suitable for very rough and partly blocked terrain with steep slopes and higher speeds as a result thereof. Regular, moderate jumps by experienced riders are no problem for these bicycles. The regular and durable use of the bicycles on North Shore trails and in bike parks should, however, be excluded. Due to the higher stresses, these bicycles should be checked for possible damage after every ride. Full suspension bikes with medium suspension travel are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
