Mountain Bikes Cross-Country Exceed CF

Exceed CF 5

Introducing the top value carbon XC hardtail on the market today, packing adventure-ready integrated storage and World-Cup winning design DNA into a durable carbon frame and with reliable RockShox and Shimano components.

Front Fork Travel: 100 mm
Weight: 12.32 kg

Customer reviews (2)

Colour: Cosmos Black

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Members only product.

Sold out

Highlights Exceed CF 5

Ride without limits

A new kind of XC

There’s a new, free-spirited attitude to riding XC, and the Exceed is what it’s all about. Built to make quick progress up, down, and across any type of ground, the new Exceed is more capable and adventure-ready than ever, all while staying true to its fast and simple hardtail roots. No boundaries. No barriers. No limits.

Capacity for adventure

The Exceed has built a cult following in bikepacking circles for how it balances efficiency and capability. Faster than a gravel bike when the going gets rough, yet lighter than a full suspension setup, the Exceed hits the sweet spot for off-road adventure seekers.

Sophisticated premium artwork

Captivating, eye-catching and refined. The paintwork is transparently tinted, akin to a colour wash, highlighting the carbon structure and emphasizing the elegance and lightness of the frame. Every subtly different artwork results in a unique bike each time.

Key features

Accessories shown here are sold separately. Buy the products here.

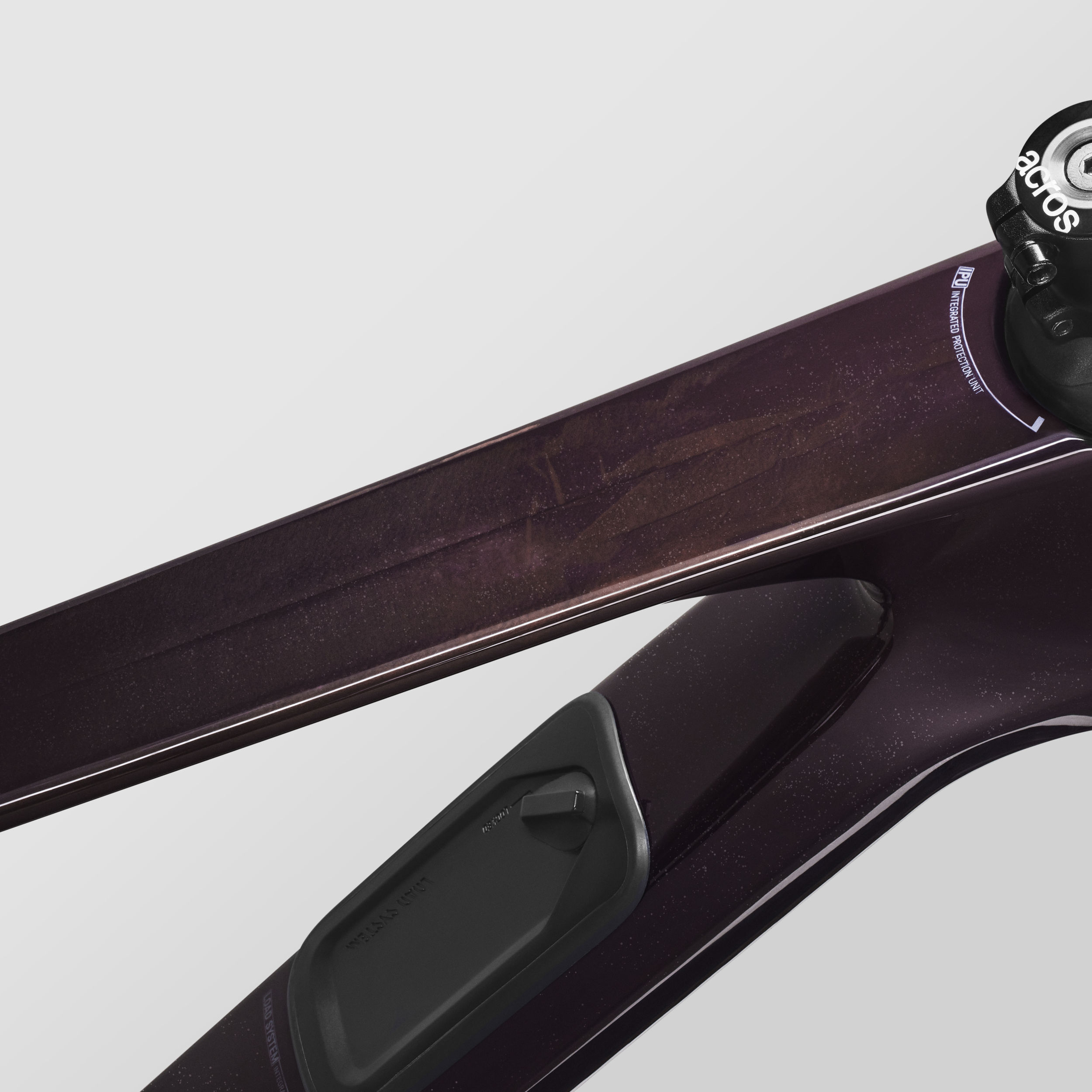

Integrated onboard tool storage

Mid-race fixes and mid-tour repairs have never been so quick and clean. The Exceed's LOAD Down Tube Storage is the slickest way to stash a spare tube and quick-fix tools totally out of sight and out of mind until you need it. Your bike is always ready to go whenever you are.

All the mounts you need

With space for two bottles plus a frame bag, front triangle real estate is what we love about hardtails like the Exceed. The new Exceed is even more adventure-ready thanks to a third cage mount beneath the down tube for additional liquids or more tools and spares.

Effective frame protection

Keeping things quiet when you’re on the trail and your frame shielded from wayward rock strikes, we’ve gone the extra mile to integrate rubberised protection where it’s needed most: under the down tube to help protect against stone strikes, on the chainstay ends to protect against heel rub, and on the chainstays to reduce sound and damage from chain slap.

A smooth, easy-to-service threaded bottom bracket

For long-lasting, smooth-spinning and creak-free reliability the Exceed now rolls on a 73 mm BSA threaded bottom bracket standard. Simple serviceability and parts availability, wherever you ride.

Components

Content is loading

Frame

Frame
- Canyon Exceed CF
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 1,477 g
Suspension Fork
- RockShox Recon Silver RL
- Stanchion Diameter 32 mm
- Travel 100 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 51 mm
- Weight 2,025 g

Drivetrain

Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length long
- Weight 356 g
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight 136 g
Cassette
- Shimano Deore M6100
- Number of sprockets 12
- Range 10-51
Crank
- Shimano Deore M6120
- Number of chainrings 1
Bottom bracket
- Shimano BB-MT501
- Bottom bracket standard BSA HT2 68/73
- Weight 73 g
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano SLX BR-M7110
- Number of pistons 2
Disc Brake
- Shimano SLX BR-M7110
- Number of pistons 2
Brake Rotor
- Shimano RT76
- Size 180 mm
- Weight 190 g
Brake Rotor
- Shimano XT RT76
- Size 160 mm
- Weight 151 g

Wheels

Front Wheel
- DT Swiss LN XC
- Axle dimension 15x110 mm
- Rotor mount IS 6-bolt
- Inner width 25 mm
- Rim material Aluminium
- Weight 976 g
Rear Wheel
- DT Swiss LN XC
- Axle dimension 12x148 mm
- Rotor mount IS 6-bolt
- Inner width 25 mm
- Rim material Aluminium
- Weight 1,096 g
Tyre
- Schwalbe Rocket Ron 2.25''
- Width 2.25"
- Weight 535 g
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Stem
- CANYON ST0039
- Fork steer tube diameter 1 1/8"
- Clamping diameter 31,8 mm
Handlebar
- CANYON HB0072
- Clamping diameter 31,8 mm
Grips
- Canyon push-on Grips

Seat

Saddle
- Selle Italia Model X
- Width 145 mm
- Gender Unisex
- Weight 310 g
Seatpost
- Canyon SP0083-01
- Seatpost diameter 31,6 mm
- Material Aluminium (AL)
- Weight 324 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- BAND 003-V01 BIKE CATEGORY 3
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Canyon Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	623 - 743	663 - 783	703 - 823	743 - 863	783 - 903
b Seat Tube Length in mm	350	390	430	470	510
c Top Tube Length in mm	569	587	611	634	658
d Head Tube Length in mm	90	95	105	125	140
e Head Tube Angle	67°	67°	67°	67°	67°
f Seat Tube Angle	75°	75°	75°	75°	75°
g Chainstay Length in mm	425	425	425	430	435
h Wheel Base in mm	1.111	1.130	1.156	1.186	1.217
i Stack in mm	600	604	613	632	646
j Reach in mm	408	425	447	465	485
k Stand-over Height in mm	769	794	820	850	877
l Bottom Bracket Offset in mm	58	58	58	58	58

Component geometry

Detailed geometry table
Frame size
Spacer in mm	5	5	5	5	5
Stem Length in mm	70	70	70	70	70
Handlebar Width in mm	700	740	740	740	740
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	32	32	32	32	32
Seat Post Diameter in mm	31,6	31,6	31,6	31,6	31,6
Seat Post Length in mm	435	435	435	435	435
Maximum Seat Post Insertion Depth in mm	210	210	210	210	210
Minimum Seat Post Insertion Depth in mm	90	90	90	90	90
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	100	100	100	100	100

Download PDF

Content is loading

Exceed CF 5 support

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
