Outlet Mountain Outlet

Neuron CF 9 WMN

Out of stock

2.199 €

Original price ~~3.399 €~~

You save 1.200 €

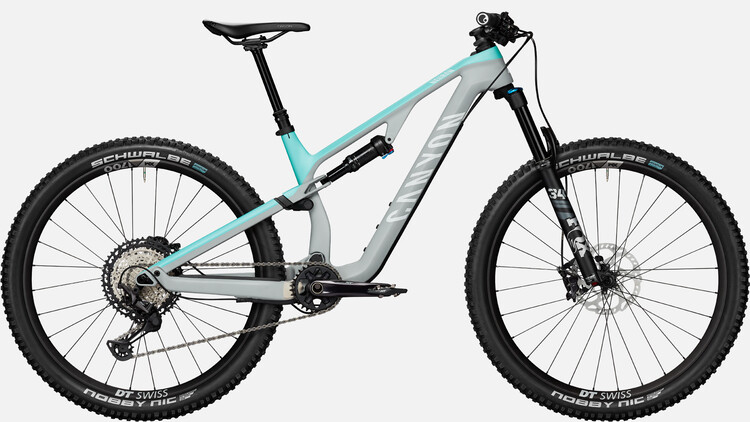

A reliable all-around performer, the Neuron CF 9 WMN is just as ready for loops on your backyard trails as it is for an Alpine epic. It’s equipped with everything you’ll need to pedal technical uphills and then let loose on the descent.

Front Fork Travel: 130 mm
Weight: 13.34 kg

Weight

Weight is based on a size M frame.

Reviews (23)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

2.199 €

Original price ~~3.399 €~~

You save 1.200 €

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

Delivery: Select frame size

Highlights Neuron CF 9 WMN

Key features

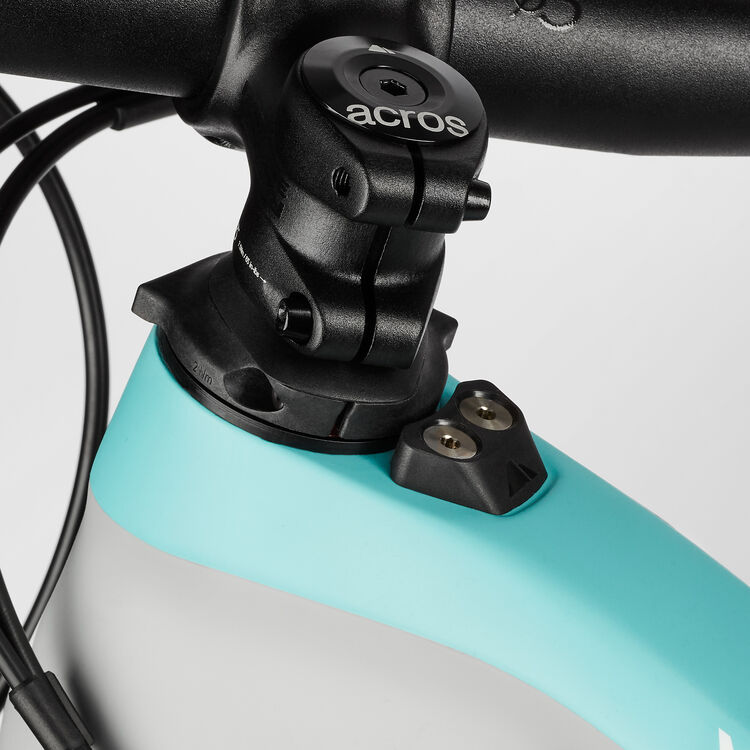

Top tube protection

Our patented Impact Protection Unit (IPU) prevents your handlebars and brake levers from impacting and damaging the Neuron’s top tube during a hard hit.

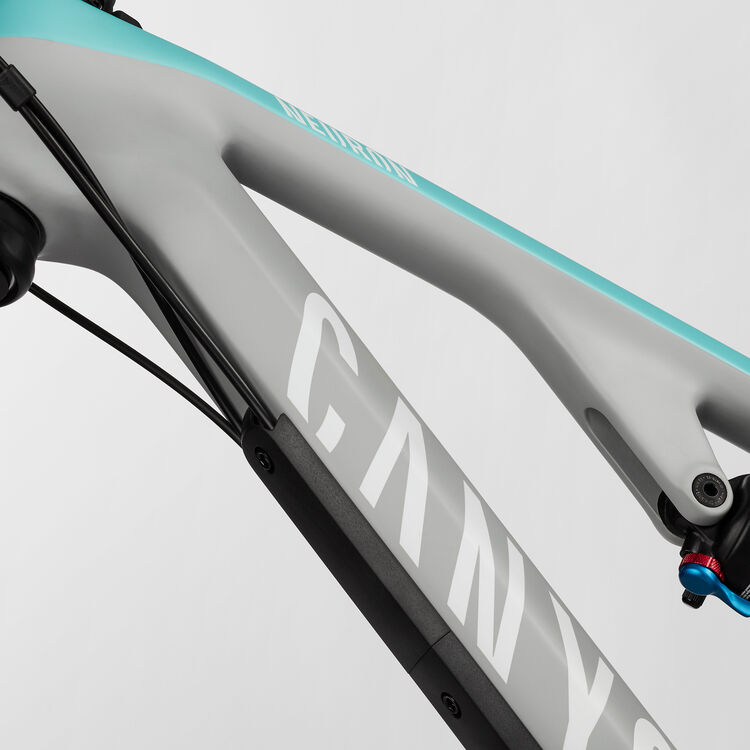

Cable and frame protection

We’ve integrated a plastic cable channel into the down tube to protect the frame from flying stones and ground impacts. This feature also makes swapping cables quick and easy.

Components

Content is loading

Frame

Frame
- Canyon Neuron CF
- Material: Carbon (CF)
Rear Shock
- FOX Float DPS Performance Lite Tune

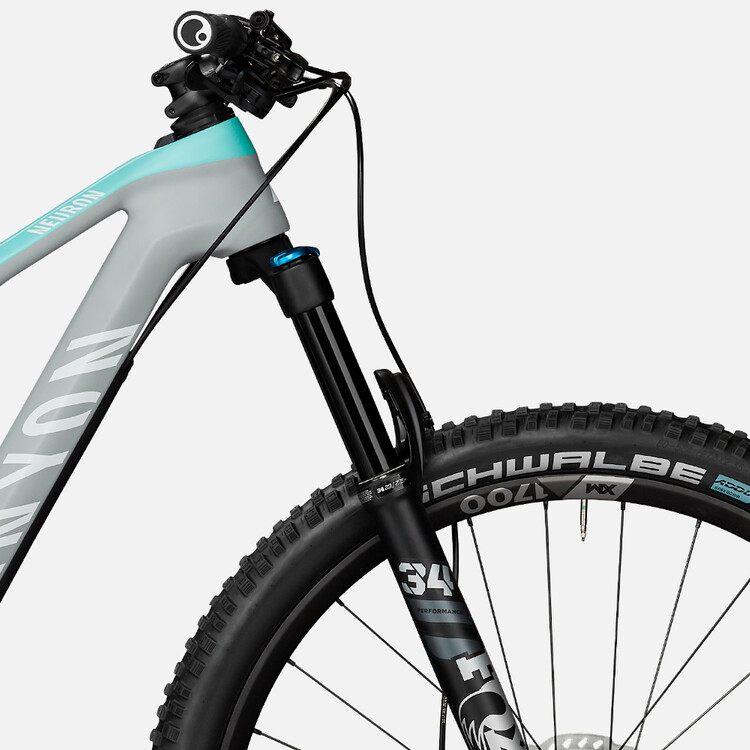

Suspension Fork
- FOX 34 Performance
- Travel: 130 mm
- Fork steer tube diameter: 1 1/8" - 1 1/4"

Drivetrain

Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 282 g
Shift Lever
- Shimano Deore SLX M7100
- Weight: 143 g
Cassette
- Shimano Deore XT CS-M8100
- Number of sprockets: 12
- Range: 10-51 12S
Crank
- Shimano Deore XT M8100 30T
- Number of chainrings: 1
Bottom bracket
- Shimano MT801
- Bottom bracket standard: BSA HT2 68/73
- Weight: 79 g
Chain
- Shimano M7100
- SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly.

Brakes

Disc Brake
- Shimano Deore XT M8120
- Number of pistons: 4
Disc Brake
- Shimano DEORE XT M8120
Brake Rotor
- Shimano SM-RT70
- Size: 180 mm
- Weight: 180 g

Wheels

Front Wheel
- DT Swiss XM 1700
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Rim height: 21 mm
- Inner width: 30 mm
- Weight: 10 g
Rear Wheel
- DT Swiss XM 1700
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Rim height: 21 mm
- Inner width: 30 mm
- Weight: 10 g
Tyre
- Schwalbe Nobby Nic
- Width: 2.4"
- Weight: 836 g
Thru Axle
- Canyon Quixle Thru Axle, Boost 148

Cockpit

Stem
- RaceFace Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
Handlebar
- Race Face Ride Riserbar
- Clamping diameter: 35,0 mm
- Rise: 10 mm
Grips
- Ergon GA20

Seat

Saddle
- Fizik Terra Alpaca X5
- Gender: Unisex
- Weight: 230 g
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 165	165 - 174	≥ 174
Seat Height in mm (a)	627 - 736	653 - 783	698 - 828
Seat Tube Length in mm (b)	400	400	445
Top Tube Length in mm (c)	558	581	603
Head Tube Length in mm (d)	88	100	102
Head Tube Angle (e)	67°	67°	67,5°
Seat Tube Angle (f)	74,5°	74,5°	74,5°
Chainstay Length in mm (g)	430	430	440
Wheel Base in mm (h)	1.121	1.146	1.167
Stack in mm (i)	578	589	614
Reach in mm (j)	398	418	433
Stand-over Height in mm (k)	758	762	780
Bottom Bracket Offset in mm (l)	18	18	38

Component geometry

Detailed geometry table

Spacer in mm	5,0	5,0	5,0
Stem Length in mm	50	50	50
Handlebar Width in mm	720	720	740
Crank Length in mm	170,0	170,0	175,0
Chainring Size	30	30	30
Seat Post Diameter in mm	30,9	30,9	30,9
Dropper post travel in mm	125	150	150
Seat Post Length in mm	378	425	425
Maximum Seat Post Insertion Depth in mm	199	220	220
Minimum Seat Post Insertion Depth in mm	90	90	90
Wheel Size	27.5"	27.5"	29"
Disc Size in mm	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	130	130	130
Rear Suspension Travel in mm	130	130	130
Fitting Length	190X45	190X45	210X50

Download PDF

Content is loading

Neuron CF 9 WMN support

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
