Mountain Bikes Cross-Country Lux Trail CF

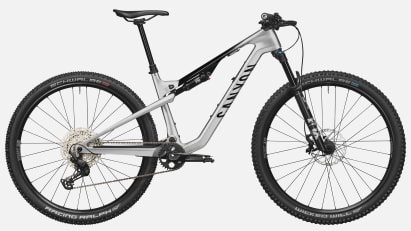

Lux Trail CF 7

42.299 kr

Cross-country weight paired with trail bike capability
Sleek, ultralight carbon frame
Smart, in-frame storage keeps essentials in reach
FOX suspension equals maximum control
Proven Shimano drivetrain and DT Swiss wheels

Front Fork Travel: 120 mm
Weight: 13.38 kg

Colour: Chrome Level 1

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

42.299 kr

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

Delivery: Select frame size

Highlights Lux Trail CF 7

Key features

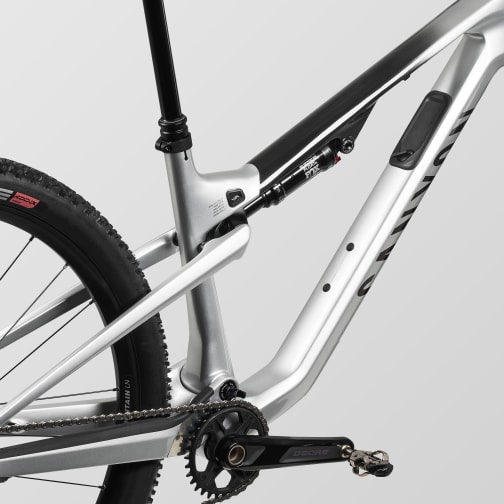

Total control linkage

Get brilliant traction and control with the Lux Trail's supple suspension. 115 mm of rear suspension travel is just a number, but when you point it downhill it rides like a whole lot more.

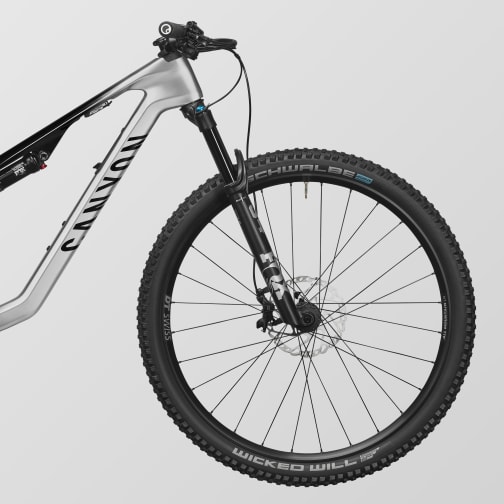

The right angles

The Lux Trail hits the sweet spot for trail-riding geometry. Up front, the head angle is slack enough to put you in the driver's seat on long and challenging descents while the relatively steep seat tube keeps you riding efficiently and comfortably all day long.

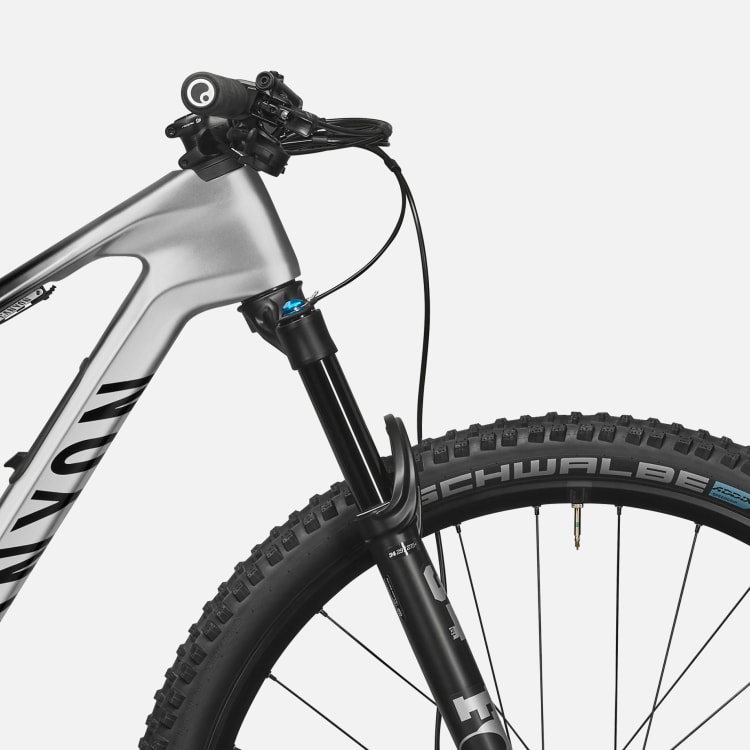

FOX suspension with on-the-fly lockout

Quickly react to changes on the trail with the remote suspension lock-out control. The 3-position-adjustment lets you easily switch between Open, Pedal, and Locked.

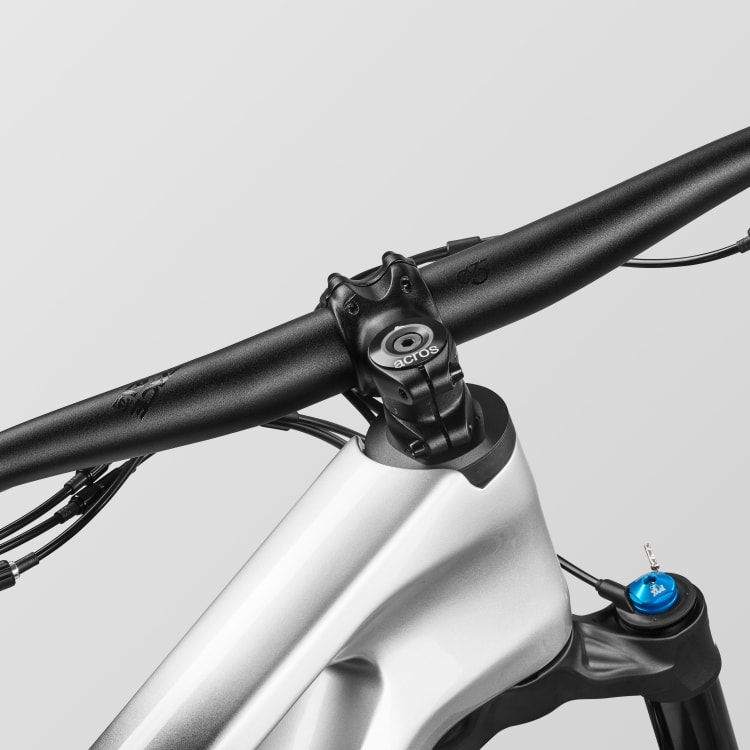

Proper frame protection

Our Impact Protection Unit (IPU) helps protect your frame when you crash by preventing the bars from rotating into the top tube. A lightweight chain guide prevents chain drops on rough trails.

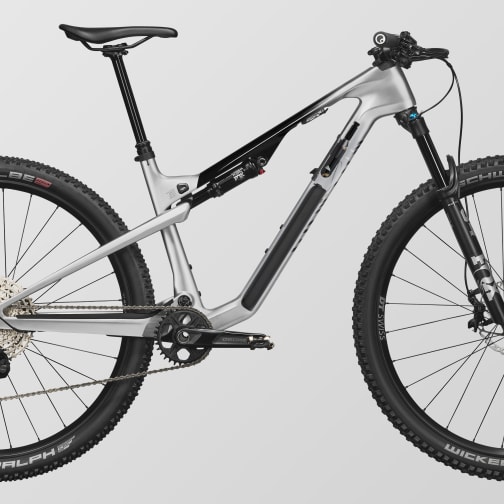

Clever tool storage

The fix is always at hand on your Lux Trail. We’ve integrated a mount, underneath the top tube, that readily accepts our Canyon FIX 6+1 mini-tool holder and tool.

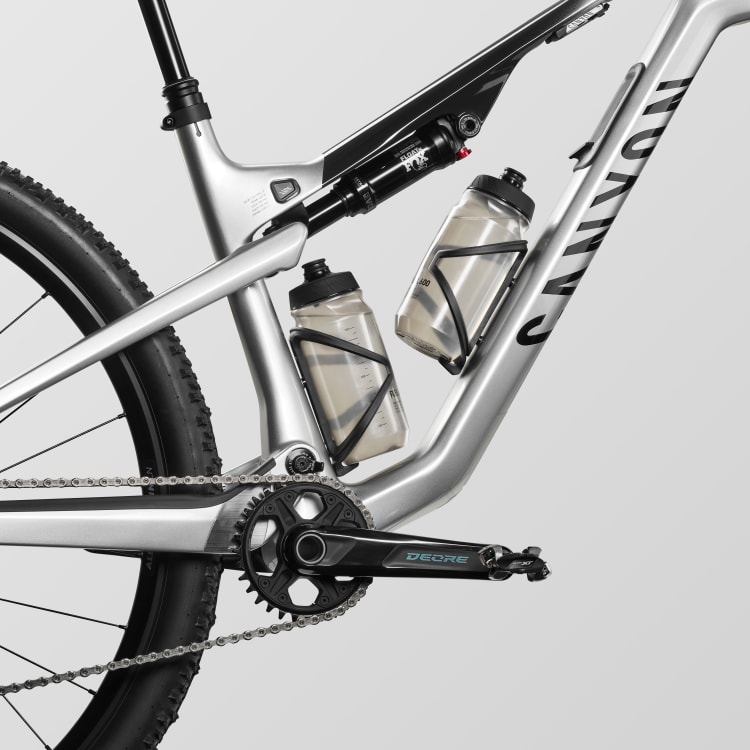

Space for all your hydration needs

Staying hydrated on epic marathon routes is absolutely essential. Some bikes in this category might have room for one bottle but the Lux Trail has been designed to hold two within the frame, even on XS frames. Leave your hydration pack at home and fill your bottles instead.

Components

Content is loading

Frame

Frame
- Canyon Lux Trail CF
- A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,060 g
Rear Shock
- FOX Float SL Performance Elite 3-Pos Remote
- Weight: 280 g
Suspension Fork
- FOX 34 SL Performance
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Seatpost Clamp
- Canyon SC0001

Drivetrain

Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
Crank
- Shimano Deore M6120
- Number of chainrings: 1
Bottom bracket
- Shimano BB-MT501
- Bottom bracket standard: BSA HT2 68/73
- Weight: 73 g
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano SLX BR-M7110
- Number of pistons: 2
Disc Brake
- Shimano Deore SLX M7120
Brake Rotor
- Shimano RT66 160
- Size: 160 mm
- Weight: 110 g
Brake Rotor
- Shimano RT66 180
- Size: 180 mm
- Weight: 140 g

Wheels

Front Wheel
- DT Swiss AM LN 370
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Inner width: 30 mm
- Rim material: Aluminium
- Weight: 1,046 g
Rear Wheel
- DT Swiss AM LN 370
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Inner width: 30 mm
- Rim material: Aluminium
- Weight: 1,165 g
Tyre
- Schwalbe Racing Ralph SG TLE EVO 2.35"
- Width: 2.35"
- Weight: 750 g
Tyre
- Schwalbe Wicked Will SR TLE EVO 2.4"
- Width: 2.4"
- Weight: 818 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Stem
- RaceFace Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
Handlebar
- RaceFace Ride Riserbar
- Clamping diameter: 35,0 mm
- Rise: 10 mm
Grips
- Ergon GXR

Seat

Saddle
- Ergon SM10 Sport
- Gender: Male
- Weight: 305 g
Seatpost
- Canyon SP0091
- Seatpost diameter: 31,6 mm
- Material: Aluminium (AL)

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	643 - 819	648 - 824	713 - 854	743 - 884	773 - 914
Seat Tube Length in mm (b)	415	420	420	450	480
Top Tube Length in mm (c)	559	585	609	633	656
Head Tube Length in mm (d)	90	90	100	115	130
Head Tube Angle (e)	67°	67°	67°	67°	67°
Seat Tube Angle (f)	76°	76°	76°	76°	76°
Chainstay Length in mm (g)	435	435	435	435	435
Wheel Base in mm (h)	1.129	1.155	1.180	1.206	1.232
Stack in mm (i)	589	589	598	612	626
Reach in mm (j)	412	438	460	480	500
Stand-over Height in mm (k)	768	768	772	777	783
Bottom Bracket Offset in mm (l)	38	38	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	10	10	10	10	10
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	760	760	760	760	760
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	32	32	32	32	32
Seat Post Diameter in mm	31,6	31,6	31,6	31,6	31,6
Dropper post travel in mm	125	125	150	150	150
Seat Post Length in mm	446	446	476	476	476
Maximum Seat Post Insertion Depth in mm	266	266	231	231	231
Minimum Seat Post Insertion Depth in mm	90	90	90	90	90
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	120	120	120	120	120

Download PDF
