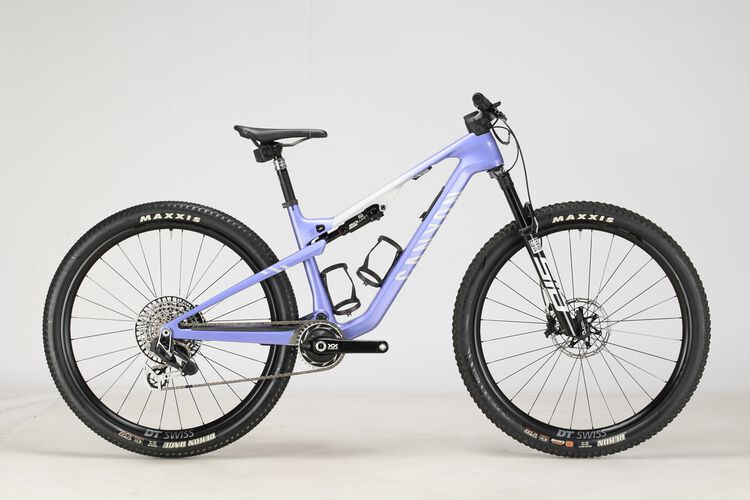

Outlet Mountain Outlet

Lux Trail CFR LTD

5.459 €

Original price ~~6.719 €~~

You save 1.260 €

The Lux Trail CFR LTD just might be the finest down-country bike on the planet today, pairing a superlight CFR frame with pro-level wireless SRAM shifting and RockShox Ultimate suspension.

Weight: 11.66 kg

Weight

Weight is based on a size M frame.
Material: Carbon (CFR)

Reviews (6)

Press and awards (1)

Members only product.

Select your model

Delivery within 3-10 working days

Only 1 left in stock

Attention: It is not always possible to show all signs of wear. You should expect other scratches, paint damage and/or signs of use. Pricing is adjusted according to the wear class (light, medium or heavy signs of use).

Members only product.

5.459 €

Original price ~~6.719 €~~

You save 1.260 €

Delivery within 3-10 working days

Only 1 left in stock

Additional information

Current delivery times information. Read more

Not included:

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

Delivery within 3-10 working days

Wear level

Slight signs of use

Bikes in this category may have the odd scratch, chipped paintwork or colour deviations. The cassette and chain will have been used but display no obvious signs of wear.

These images show model #0001108603

Highlights Lux Trail CFR LTD

Life on the Lux Trail

Pushing what's possible

Sometimes the greatest athletes race well beyond the tape. Adventure racers are a rare breed that live for the gruelling, the punishing, and the almost impossible. The Lux Trail was chosen by Neil Phillips on his attempt to claim the Lakeland 200 FKT, for its all day comfort, efficiency on the climbs and stability in the rough stuff.

Made for doing it all day long

Ride further into the unknown than ever before with a bike that's focused on all day performance. The brand new Lux Trail lets you create your own story with its incredibly efficient geometry that inspires fast lines and smashing climbs. Conquer demanding marathon rides and beat long-standing Strava records on the most capable 120 mm bike out there.

Components

Frame

Frame
- Canyon Lux CFR Trail
- Axle dimension: 12x148 mm
- Material: Carbon (CFR)
- Weight: 1,620 g
Rear Shock
- Rock Shox SIDLuxe Ultimate Remote

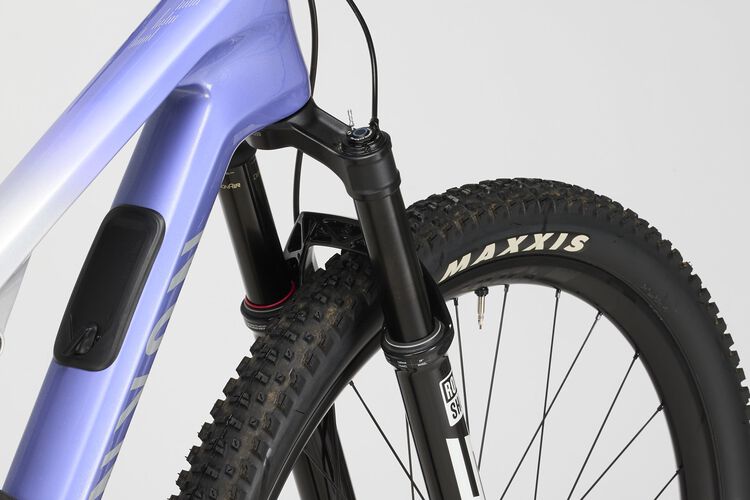

Suspension Fork
- Rock Shox SID Ultimate 3-Position Remote
- Axle dimension: 15x110 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 1,480 g

Drivetrain

Battery
- SRAM Powerpack

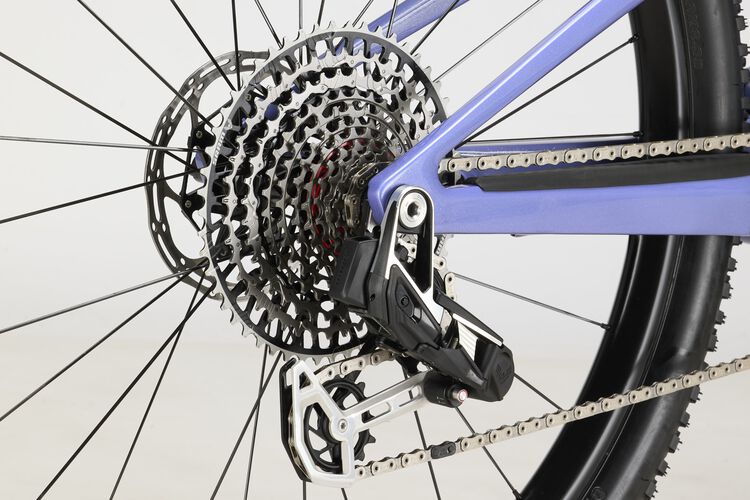

Rear Derailleur
- SRAM XX Eagle AXS Transmission
- Weight: 450 g
Shift Lever
- SRAM AXS Pod Ultimate
- Weight: 68 g
Shift Lever
- SRAM AXS POD Ultimate
- Weight: 71 g
Cassette
- SRAM XX Eagle Transmission 10-52
- Number of sprockets: 12

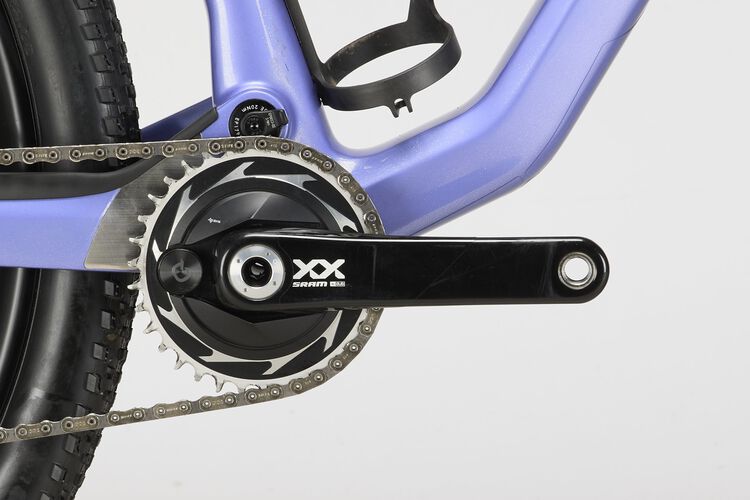

Crank
- SRAM XX SL Eagle DUB
- Number of chainrings: 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
Chain
- SRAM XX T-Type
Chain
- SRAM PowerLock

Brakes

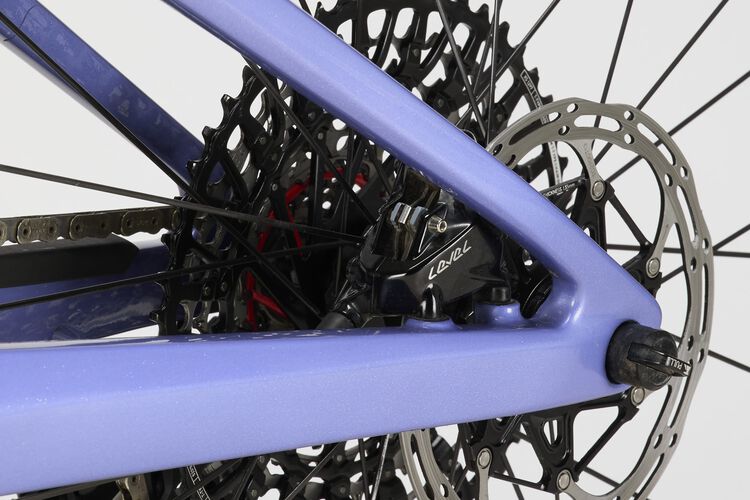

Disc Brake
- SRAM Level Ultimate Stealth
- Number of pistons: 2
Disc Brake
- SRAM Level Ultimate Stealth 4-Piston
- Number of pistons: 4
Brake Rotor
- SRAM Centerline, 160mm
- Size: 160 mm
- Weight: 117 g
Brake Rotor
- SRAM Centerline X Rounded Edges
- Size: 180 mm
- Weight: 147 g

Wheels

Front Wheel
- DT Swiss XRC1200
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Rim material: Carbon
- Weight: 684 g
Rear Wheel
- DT Swiss XRC1200
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Rim material: Carbon
- Weight: 791 g
Tyre
- Maxxis Rekon 3C Exo 2.4
- Width: 2.4"
- Weight: 500 g
Tyre
- Maxxis Rekon Race Dual Exo 2.35
- Width: 2.35"
- Weight: 1,028 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Cockpit
- Canyon CP0037
- Material: Carbon (CF)
- Weight: 268 g

Seat

Saddle
- Ergon SM10 Pro
- Gender: Male
- Weight: 235 g
Seatpost
- Rock Shox Reverb AXS
- Seatpost diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 710 g
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	628 - 723	658 - 778	683 - 828	713 - 858	743 - 888
Seat Tube Length in mm (b)	415	420	420	450	480
Top Tube Length in mm (c)	559	585	609	633	656
Head Tube Length in mm (d)	90	90	100	115	130
Head Tube Angle (e)	67°	67°	67°	67°	67°
Seat Tube Angle (f)	76°	76°	76°	76°	76°
Chainstay Length in mm (g)	435	435	435	435	435
Wheel Base in mm (h)	1.129	1.155	1.180	1.206	1.232
Stack in mm (i)	589	589	598	612	626
Reach in mm (j)	412	438	460	480	500
Stand-over Height in mm (k)	768	768	772	777	783
Bottom Bracket Offset in mm (l)	38	38	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Cockpit Dimensions in mm	50-740	50-760	50-760	50-760	50-760
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	34	34	34	34	34
Seat Post Diameter in mm	31,6	31,6	31,6	31,6	31,6
Dropper post travel in mm	100	125	150	150	150
Seat Post Length in mm	340	390	440	440	440
Maximum Seat Post Insertion Depth in mm	175	200	225	225	225
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	120	120	120	120	120
Rear Suspension Travel in mm	115	115	115	115	115
Fitting Length	210X50	210X50	210X50	210X50	210X50

Download PDF

Press and awards

2024

Bike Of The Year

No other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.

Bike Of The Year

No other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.

Content is loading

Lux Trail CFR LTD support

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
