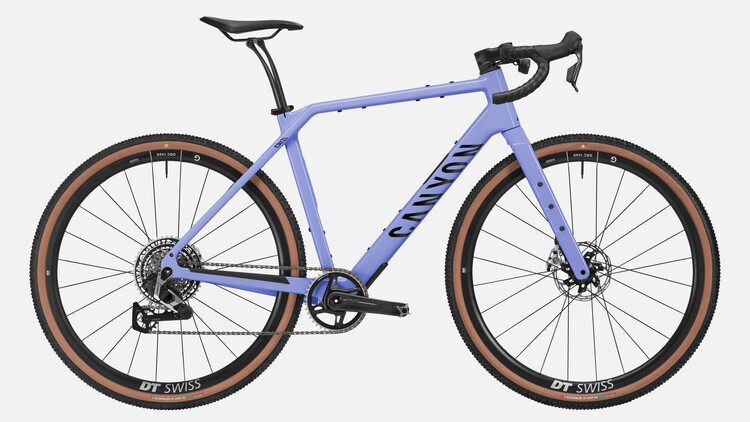

Grizl CF 9 w/ ECLIPS
- Strong, infinitely adaptable carbon frame ready for all kinds of adventure

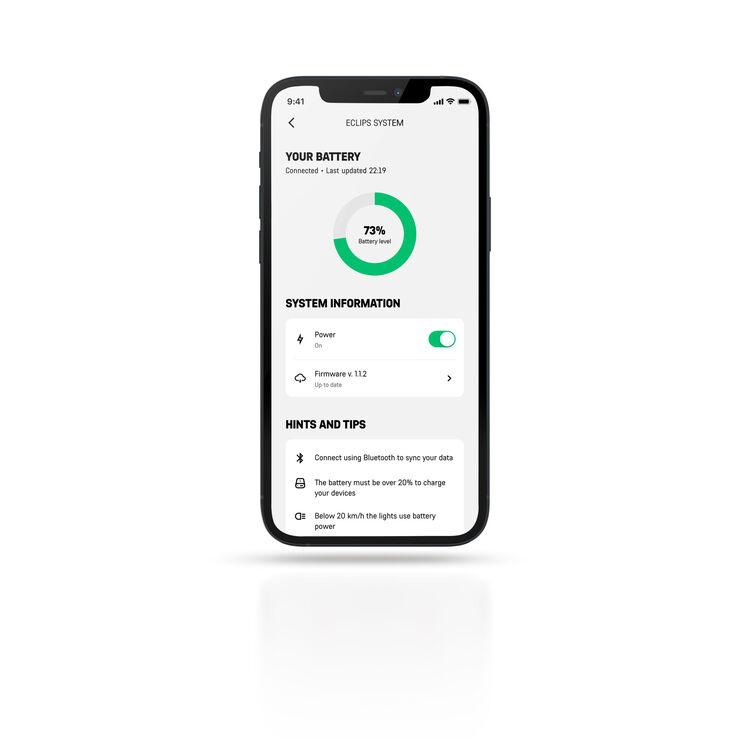

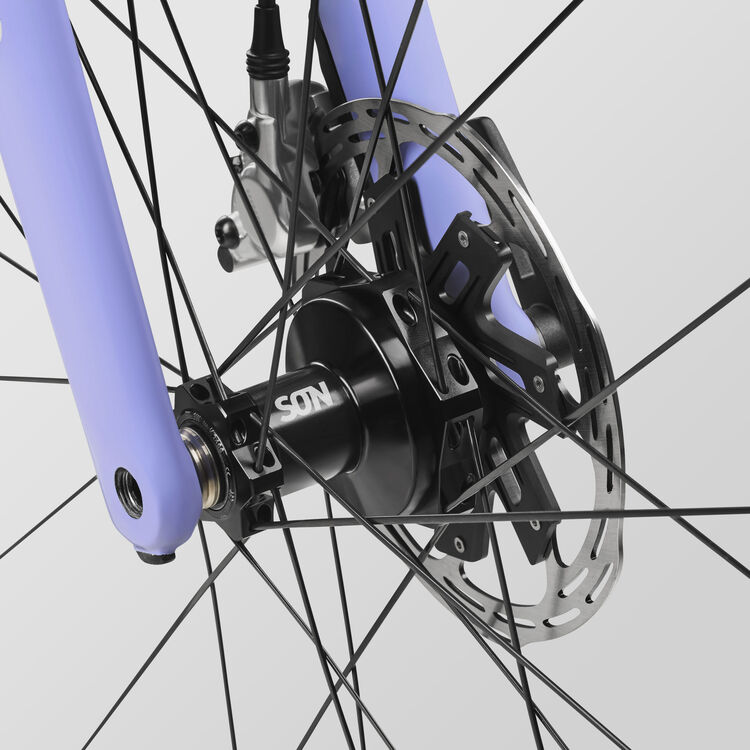

- Canyon ECLIPS Technology - SON Dynamo, Lupine lights, Canyon BlackBox
- SRAM RED XPLR AXS groupset
- DT Swiss carbon gravel wheelset
-
Weight:
8.84 kg
WeightWeight is based on a size medium frame.
- Material: Carbon (CF)
-
-
Members only product. Log in here
Attention: It is not always possible to show all signs of wear. You should expect other scratches, paint damage and/or signs of use. Pricing is adjusted according to the wear class (light, medium or heavy signs of use).
-
No credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount
-
Leasing with VapausLeasing with Vapaus allows you to save up to 20-40% on your next Canyon. Check with your employer if they are already in cooperation with Vapaus. Learn more.Leasing with GoByBikeLeasing with GoByBike allows you to save up to 20-40% on your next Canyon. Check with your employer if they are already in cooperation with GoByBike. Learn more.
-
Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride -
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Highlights Grizl CF 9 w/ ECLIPS
Mountains calling
ECLIPS in 50 seconds
Frame
-
Frame
- Canyon Grizl CF
- Axle dimension: 12x142 mm
- Tyre clearance: 54 mm
- Material: Carbon (CF)
- Weight: 1,106 g
-
Fork
- Canyon FK0144 CF
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 54 mm
- Material: Carbon (CF)
- Weight: 580 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM RED XPLR AXS RD 13s
- Weight: 378 g
-
Cassette
- SRAM RED XPLR XG-1391
- Number of sprockets: 13
-
Crank
- SRAM RED XPLR
- Number of chainrings: 1
-
Bottom bracket
- SRAM Pressfit DUB Wide
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- SRAM RED
Brakes
-
Shift-/ Brake Lever
- SRAM RED AXS HRD
- Number of pistons: 2
- Weight: 355 g
-
Shift-/ Brake Lever
- SRAM RED AXS HRD
- Number of pistons: 2
- Weight: 363 g
-
Brake Rotor
- SRAM Paceline X
- Size: 160 mm
- Weight: 134 g
Wheels
-
Front Wheel
- DT Swiss GRX 1400 Spline
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 30 mm
- Inner width: 24 mm
- Rim material: Carbon
- Weight: 955 g
-
Rear Wheel
- DT Swiss GRC 1400 Spline
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 30 mm
- Free hub: SRAM XDR
- Inner width: 24 mm
- Rim material: Carbon
- Weight: 832 g
-
Tyre
- Schwalbe G-One RX PRO V-Guard TLR
- Width: 45 mm
- Weight: 570 g
-
Thru Axle
- Canyon Through Axle
- Axle dimension: 12x100 mm
- Material: Aluminium (AL)
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
- Material: Aluminium (AL)

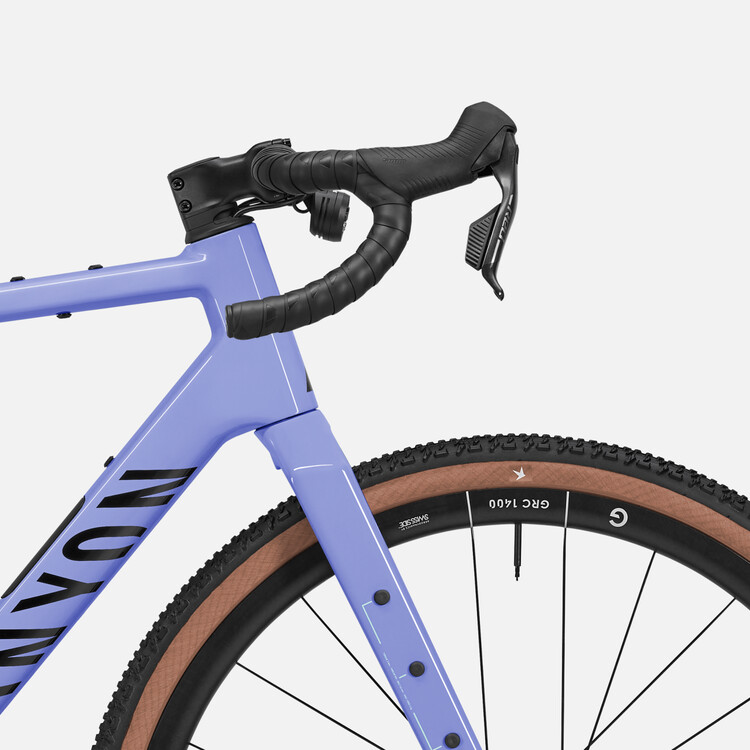

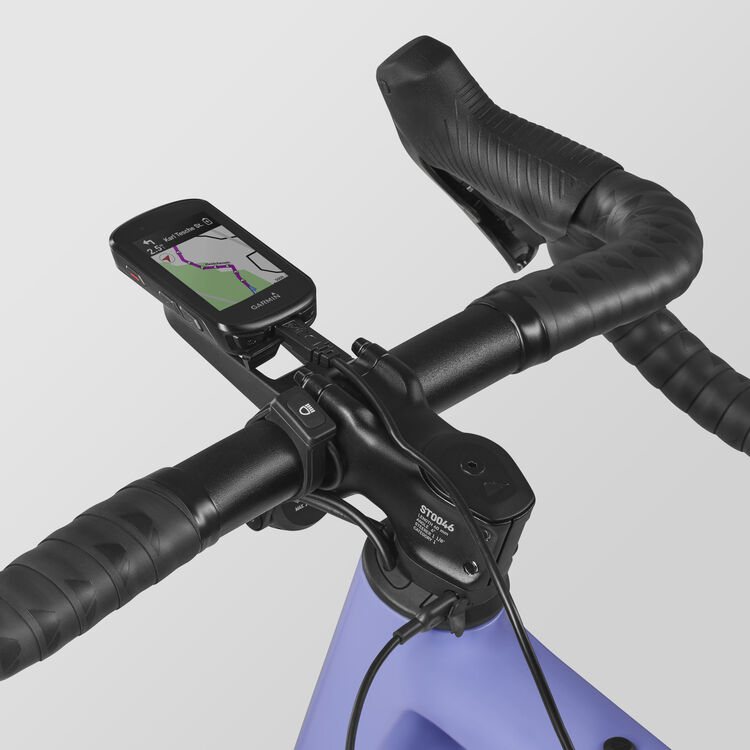

Cockpit
-
Stem
- Canyon ST0046
- A lightweight and durable aluminium stem for use on gravel and road bikes.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon HB0067
- Robust aluminium handlebar with flared drops for enhanced off-road control.
- Clamping diameter: 31,8 mm
- Width: 440 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Argo Terra X1
- Gender: Unisex
- Weight: 220 g
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Material: Carbon
- Setback: 13 mm / 25 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g
Light
-
Lights
- Lupine C14
-
Lights
- Lupine SF AL Nano
-
Lights
- Lupine Battery 3,5Ah
Accessories
-
Workshop
- Canyon FIX Minitool 6+1
- The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System.
- Features: Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx)
- Material: S2 Steel
- Dimensions: 55mm x 29mm x 6,9mm
- Weight: 62g
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon 1CX Bike Category Manual
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
432 | 462 | 492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
532 | 545 | 559 | 581 | 603 | 618 | 643 |
Head Tube Length in mm
(d)
|
120 | 126 | 141 | 158 | 183 | 203 | 226 |
Head Tube Angle
(e)
|
68,8° | 69,5° | 70,5° | 71° | 71° | 71° | 71° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
440 | 440 | 440 | 440 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.047 | 1.054 | 1.059 | 1.076 | 1.100 | 1.115 | 1.142 |
Stack in mm
(i)
|
550 | 559 | 578 | 596 | 619 | 638 | 660 |
Reach in mm
(j)
|
369 | 380 | 388 | 404 | 420 | 429 | 448 |
Stand-over Height in mm
(k)
|
764 | 785 | 810 | 826 | 861 | 883 | 892 |
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 75 | 75 | 75 | 75 | 75 |
Effective stack: Vertical distance between the bottom bracket and the hand position Learn more
|
639 | 646 | 666 | 683 | 706 | 727 | 749 |
Effective reach: Horizontal distance between the bottom bracket and the hand position Learn more
|
496 | 507 | 527 | 544 | 560 | 577 | 596 |
Spacer in mm
|
25,0 | 25,0 | 25,0 | 25,0 | 25,0 | 25,0 | 25,0 |
---|---|---|---|---|---|---|---|
Stem Length in mm
|
50 | 50 | 60 | 60 | 60 | 70 | 70 |
Handlebar Width in mm
|
420 | 420 | 420 | 440 | 440 | 440 | 440 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 |
Chainring Size
|
40 | 40 | 40 | 40 | 40 | 40 | 40 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
-
2025Red Dot Award 2025 WinnerThe Grizl CF impresses with its distinctive, ergonomically designed cockpit and functionality that is perfectly tailored to meet the needs of gravel riders.Red Dot Award 2025 WinnerThe Grizl CF impresses with its distinctive, ergonomically designed cockpit and functionality that is perfectly tailored to meet the needs of gravel riders.
Grizl CF 9 w/ ECLIPS support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
