E-Bikes City E-Bikes Roadlite:ONfly Roadlite:ONfly AL

Roadlite:ONfly

3.699 €

Lightweight e-bike built for fast, effortless urban rides
Smooth, natural power that enhances every ride
Sporty, responsive, fun – with performance components to match
Integrated design with clean lines
Stay visible, dry, and ready for anything with built-in lights and optional fenders

Weight: 16.1 kg

Weight

Weight is based on a size medium frame.
Material: Aluminium (AL)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

3.699 €

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Financing with Splitit

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount

Financing with Klarna Instalments

Klarna offers direct payments, pay later options, or installment plans
Calculate amount
Leasing with Vapaus

Leasing with Vapaus allows you to save up to 20-40% on your next Canyon. Check with your employer if they are already in cooperation with Vapaus. Learn more.

Leasing with GoByBike

Leasing with GoByBike allows you to save up to 20-40% on your next Canyon. Check with your employer if they are already in cooperation with GoByBike. Learn more.
Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.

How to choose Collect & Ride
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.

Learn more

Delivery: Select frame size

Highlights Roadlite:ONfly

Key features

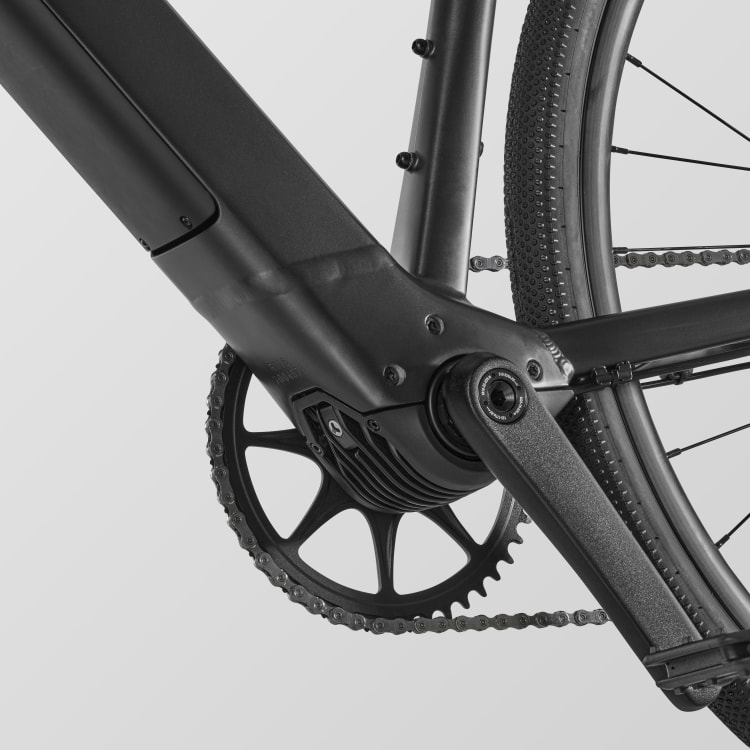

Dynamic power

Feel boosted: with quiet background support and a serious kick when you need it, the FAZUA Ride 60 motor delivers a smooth, natural ride feel that keeps you moving effortlessly. When it’s time to climb or surge past traffic, Boost mode gives you that extra push on demand. A 430 Wh battery provides up to 110 km of range – and can be charged on the bike or removed for fast, flexible recharging – so you're always ready for the next ride.

Be seen, ride safe

Developed by LightSKIN, this is their most advanced rear light yet. Fully integrated into the Roadlite:ON’s seatpost, the sleek, high-mounted LED strip delivers standout visibility from behind and the sides. Powered by the main battery and controlled via the FAZUA handlebar remote, it’s clean, modern, and built for real-world city safety – no charging, no extra parts, just smart integration. And even if the motor runs out of power, the light keeps shining for at least two hours, so you stay visible all the way home.

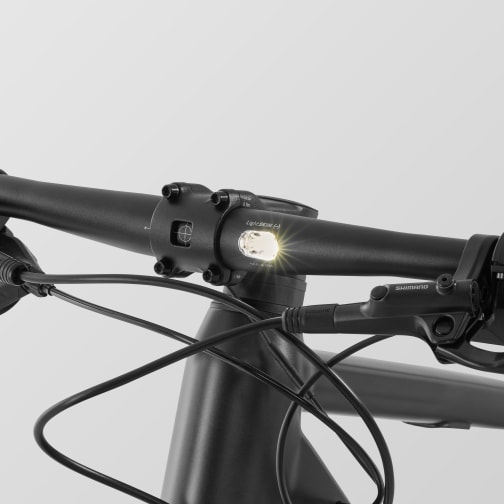

Illuminate your ride

LightSKIN's H2E flat handlebar brings modern, integrated lighting to the Roadlite:ON. A 150-lumen LED front light is seamlessly built into the bar for clean aesthetics and bright, road-legal visibility without extra cables or clutter. Powered by the bike’s main battery and controlled via the FAZUA handlebar remote, it’s a smart, streamlined solution for staying seen in city traffic.

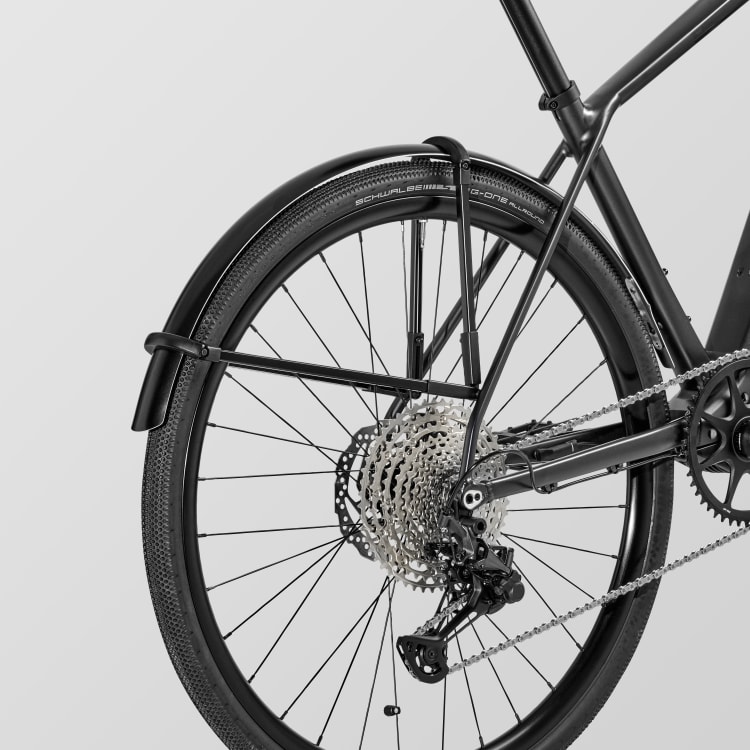

All-weather ready

Stay prepared for changing conditions with optional fenders – perfect for wet commutes or changeable conditions. Compatible with the Canyon Roadlite:ONfly Fender Set, available on the Canyon webshop.

Components

Content is loading

Frame

Frame
- Canyon Roadlite:ON
- Robust alunimium e-hybrid frame combining a minimalist design with smooth e-bike power.
- Axle dimension: 12x142 mm
- Material: Aluminium (AL)
- Weight: 2,100 g
Fork
- Canyon FK0074 carbon fork
- Lightweight carbon fork with comfortable, vibration-damping design.
- Fork steer tube diameter: 1 1/8"
- Material: Carbon (CF)
- Weight: 550 g
Headset
- Acros

Drivetrain

Motor
- Fazua Ride 60 Drive Unit
Battery
- Fazua Energy 430 Wh
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 248 g
Shift Lever
- Shimano Deore M6100
- Weight: 135 g
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
Crank
- Samox EC37F
- Number of chainrings: 1
Chainring
- Samox EMA04 48T
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano MT200 / UR300 rear brake
- Number of pistons: 2
Disc Brake
- Shimano MT200 / UR300 front brake
- Number of pistons: 2
Brake Rotor
- Shimano RT10
- Size: 160 mm
- Weight: 178 g

Wheels

Front Wheel
- Alex Rims GX26P rim with Shimano TC500 front hub
- Axle dimension: 15X100 mm
- Rotor mount: Center Lock
- Weight: 900 g
Rear Wheel
- Alex Rims GX26P rim with Shimano TC500 rear hub
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Weight: 940 g
Tyre
- Schwalbe G-One Allround Performance Race Guard
- Width: 1.5"
- Weight: 490 g
Thru Axle
- Thru Axle 15x100
Thru Axle
- Canyon GP0359-01 Thru Axle 142x12

Cockpit

Stem
- Canyon Stem ST0037
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
Handlebar
- Light Skin H2E with integrated light - 150 Lumen
- Width: 640 mm
- Rise: 5 mm
Grips
- Ergon GA3 mini-wing
Bells
- Knog Oi Classic

Seat

Saddle
- Selle Royal SRX
- Gender: Unisex
- Weight: 300 g
Seatpost
- Light Skin SF with integrated light
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 415 g
Seat Clamp
- Canyon SC0001

Accessories

Battery Charger
- Fazua Ride60 Ladegerät
Pedals
- Femin FP-803
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- BAND 006-V01 BIKE CATEGORY 1e
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- QSG FAZU RIDE 60

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 170	170 - 180	≥ 180
Seat Height in mm (a)	528 - 758	576 - 806	624 - 854
Seat Tube Length in mm (b)	410	458	506
Top Tube Length in mm (c)	523	562	599
Head Tube Length in mm (d)	129	160	205
Head Tube Angle (e)	71,5°	71,5°	71,5°
Seat Tube Angle (f)	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	425	425	425
Wheel Base in mm (h)	1.000	1.035	1.073
Stack in mm (i)	550	592	635
Reach in mm (j)	370	397	421
Stand-over Height in mm (k)	719	773	808
Bottom Bracket Offset in mm (l)	60	73	73

Component geometry

Detailed geometry table

Spacer in mm	15	15	15
Stem Length in mm	60	60	60
Handlebar Width in mm	640	640	640
Crank Length in mm	170,0	170,0	170,0
Seat Post Diameter in mm	30,9	30,9	30,9
Seat Post Length in mm	400	400	400
Maximum Seat Post Insertion Depth in mm	330	330	330
Minimum Seat Post Insertion Depth in mm	100	100	100
Wheel Size	27.5"	28"	28"
Disc Size in mm	160 / 160	160 / 160	160 / 160
Battery capacity	430 Wh	430 Wh	430 Wh

Download PDF

Roadlite:ONfly support

Canyon Bikestand

63,95 €

New stock

View

Lumos Ultra Cycling Helmet

105,95 €

Canyon Flannel Shirt

84,95 €

-56%

Canyon Essential Case

13,95 €

Original price ~~31,95 €~~

You save 18 €

CLLCTV Core Light Jacket

210,95 €

-48%

Canyon Shoulder Bag

13,95 €

Original price ~~26,95 €~~

You save 13 €

CLLCTV Core Crewneck

73,95 €

Canyon Organic Cotton Men's T-Shirt

42,95 €

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

15,95 €

Canyon Women's Zip Hoodie

115,95 €

Canyon Curved Cap

31,95 €

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
